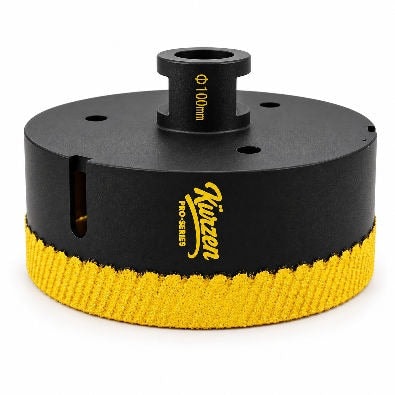

KURZEN PRO-SERIES Matrix Drill Bit 100mm
SKU KZ-JM25100
KURZEN PRO-SERIES Matrix Drill Bit 100mm is a 100mm vacuum-brazed diamond bit for clean, controlled dry drilling in porcelain, ceramic and natural stone. Its M14 connection suits compatible angle grinders and professional tile work.
Ships In
3–5 business days
Ask our team about pricing, availability and samples.
KURZEN PRO-SERIES Matrix Drill Bit 100mm is designed for clean, controlled dry drilling through hard tile and stone. The 100mm diameter is well suited to larger plumbing, waste and service openings, while the vacuum-brazed diamond construction supports efficient cutting and a neat finished opening.
KURZEN PRO-SERIES Matrix Drill Bit 100mm: key features
- Purpose-sized 100mm cutting diameter
- Vacuum-brazed diamond construction for hard materials
- M14 connection for compatible angle grinders
- Designed for dry drilling with controlled entry
- Suitable for porcelain, ceramic and selected natural stone
Product specifications
| Brand | KURZEN |
|---|---|
| SKU | KZ-JM25100 |
| Product type | Matrix diamond drill bit |
| Diameter | 100mm |
| Connection | M14 — for compatible M14 grinders |
| Working depth | Approximately 35mm |
| Construction | Vacuum-brazed diamond |
| Application | Dry drilling |
| Materials | Porcelain, ceramic, marble, limestone and bluestone |
Choosing and using this tool

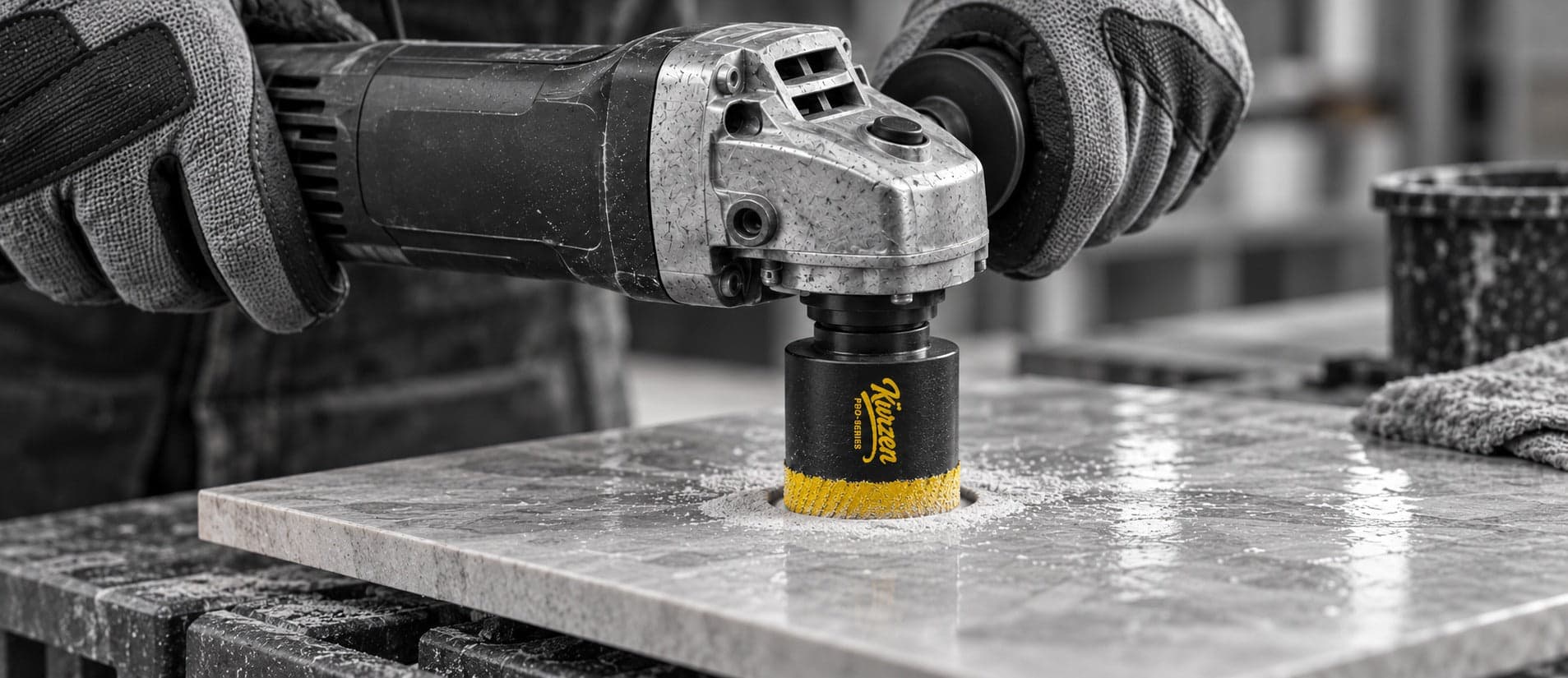

Choose the 100mm bit when the required opening matches the finished fitting or penetration. The approximately 35mm working depth covers common tile and stone installation tasks. Use it with a compatible M14 grinder and follow the tool manufacturer's operating and safety instructions.
For current manufacturer information and product imagery, see the official KURZEN product page.
Recommended Applications
- Dry drilling
